In a high-volume mattress factory, every minute of downtime cuts into your margins. When a quilting machine stops due to thread breakage, skipped stitches, or pattern distortion, your technicians need a systematic approach to resolve the issue immediately. At Infinity Mattress Machinery, we design our equipment—from the single-needle IF-QS2-1 to the multi-needle IF-Q series—with advanced diagnostics and stability in mind. However, operational variables can still cause interruptions. This guide provides a step-by-step protocol to troubleshoot common issues and get your production line back to full speed.
Determine if the issue is mechanical (needle/hook), material (fabric/thread quality), or digital (pattern file/servo error).
90% of issues stem here. Inspect tension discs, guides, and check for burrs on the needle plate or rotary hook.
Ensure the needle bar height and rotary hook timing are perfectly synchronized according to the machine manual.
On computerized models, check the touchscreen for specific error codes related to X/Y/Z axis overload or positioning.
Context: Common in high-speed single-needle operations.
Troubleshooting: Check if the needle gets too hot (requires cooling) or if tension is too tight.
Infinity Advantage: The **IF-QS2-1** features automatic thread break detection and a German DURKOPP head designed to handle high-speed tension with minimal breakage.
• Quick Fix: Replace needle (check for bent tip); reduce tension.
• Machine Feature: Auto-stop sensors prevent material waste.
Context: Often occurs in multi-needle chain stitch machines when material thickness varies.
Troubleshooting: Verify the distance between the needle and looper/hook.

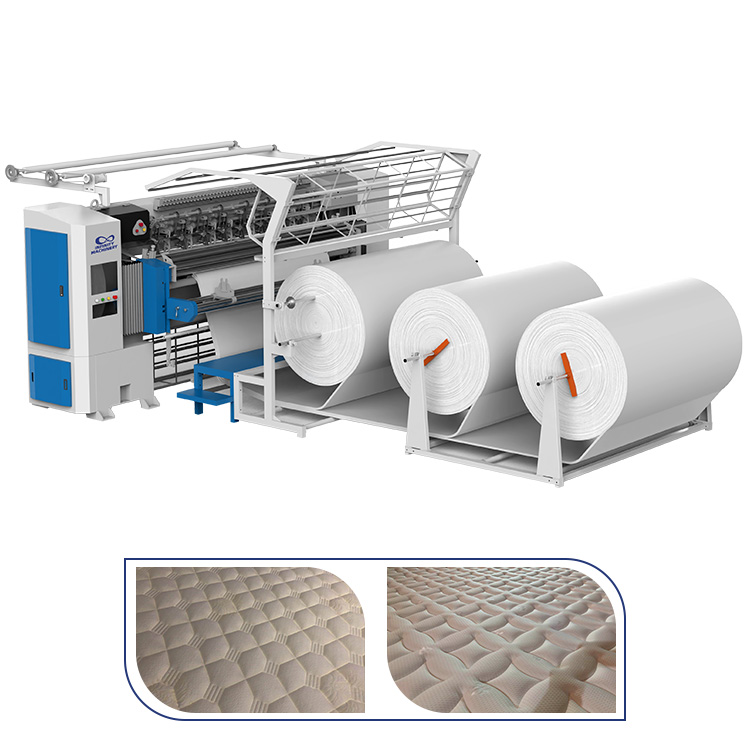

Infinity Advantage: The **IF-Q-1300** utilizes full servo control for the saddle and rollers, ensuring precise material feeding that drastically reduces skipping, even at 300m/h.
• Quick Fix: Adjust presser foot height for material thickness.
• Machine Feature: 0.5-inch needle spacing precision.
Context: The design looks "stretched" or misaligned, especially on wide panels (128").
Troubleshooting: Check fabric feeding rollers for slippage or uneven tension.
Infinity Advantage: The **IF-QM1-4 Lock Stitch Machine** employs a new shuttle guide rail support structure and servo-driven rollers to guarantee absolute pattern fidelity across the entire 3300mm width.
• Quick Fix: Clean feed rollers; check encoder connections.
• Machine Feature: Servo-driven synchronization.
Context: Indicates mechanical looseness or lack of lubrication in heavy-duty machines.
Troubleshooting: Inspect the main shaft bearings and saddle guide rails.

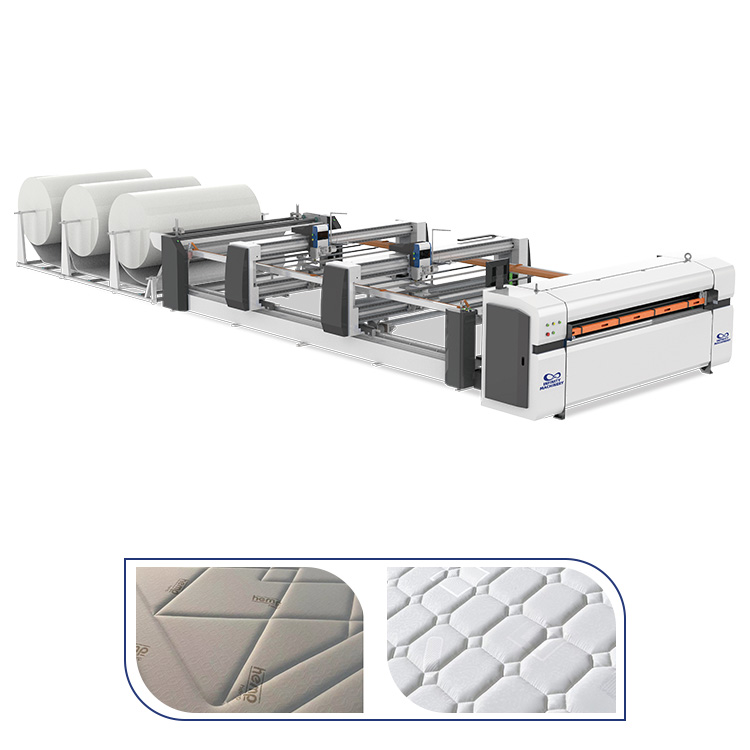

Infinity Advantage: The **IF-QS2-2 Double Beam Machine** is built with a heavy-duty frame (4500kg) to absorb vibration, but regular leveling and lubrication are essential for maintaining its quiet 3000rpm operation.
• Quick Fix: Lubricate main shaft; check floor leveling.
• Machine Feature: Double saddle structure design.
| Problem | Probable Cause | Action Item | Prevention |
|---|---|---|---|
| Needle Breakage | Needle bent; Timing off; Fabric too thick. | Replace needle; Check timing gauge. | Use correct needle size (e.g., 21#-24# for heavy fabric). |
| Uneven Stitch Length | Feed dog/Roller slippage; Servo parameter error. | Clean rollers; Reset stitch length in software. | Regularly clean feed mechanism of lint. |
| Servo Error Alarm | Voltage fluctuation; Overload; Cable loose. | Check voltage (380V); Check cable connections. | Install voltage stabilizer; Ensure cooling fans work. |
| Oil Stains on Fabric | Over-lubrication; Seal leakage. | Wipe needle bar; Check oil seals. | Follow precise oiling schedule in manual. |
Before opening any electrical cabinets or checking servo drivers, always disconnect the main power supply. For complex electrical faults on Infinity machines, contact our technical support team via the button below.
If you cannot resolve the issue using this guide, do not risk further damage. Our engineering team is ready to assist you with advanced diagnostics and spare parts.
