Minimum Order Quantity: 1 Set
Packaging Details: Film Packing / Wooden Crate Protection
Trade Terms: FOB, C&F, CIF (Optional)
Delivery Time: 10-20 Working Days
Warranty Period: 3 Years Comprehensive Coverage
Certifications:

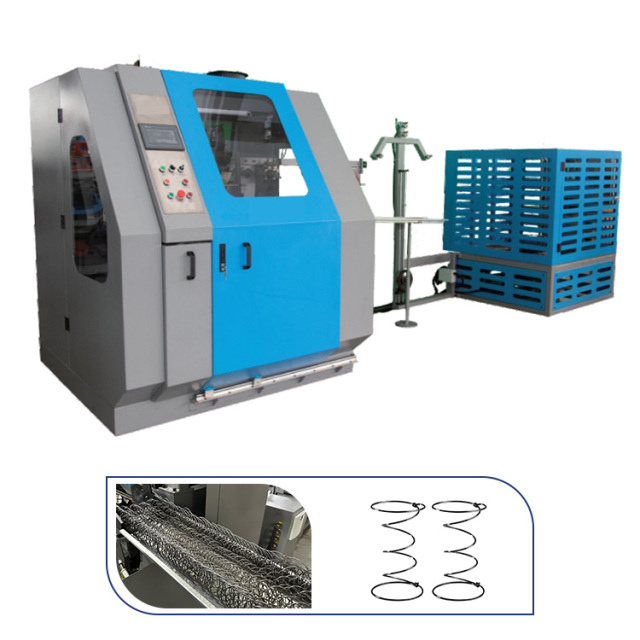

►IF-B90 computerized bonnell spring coiling machine produces bonell springs for the mattress. The machine can knot at both ends, heat-treat, and collect to an outlet channel. The capacity can go 80 pieces per minute.
►The coiler utilizes a fully integrated computerized programmable logic controller(PLC), and servo control system. Also, it’s with two CPU and high sensitivity touch screen to reach remote-control support. All machine functions include wire feeding length, heat treatment, lubrication, and self-protecting are automatically controlled.
| Model | IF-B90 |
|---|---|
| Spring type | Bonnell |
| Capacity | 90 pieces/minute |
| Spring end ring | 62-75MM, 75-95MM |
| Steel wire gauge | 1.8-2.4mm |
| Spring height | 80-190MM(Option: 190-210mm) |
| Convolutions | 4-7 turns |
| Main drive power | 4KVA |
| Swift frame power | 2.2KVA |
| Heat treatment | 15KVA |
| Weight | Net Approx. 2730KG |
| Power requirement | 380V, 3 phase, 50-60HZ(Option: 415V-480V, 220V) |
