Minimum Order Quantity: 1 Set
Packaging Details: Film Packing / Wooden Crate Protection
Trade Terms: FOB, C&F, CIF (Optional)
Delivery Time: 10-20 Working Days
Warranty Period: 3 Years Comprehensive Coverage
Certifications:

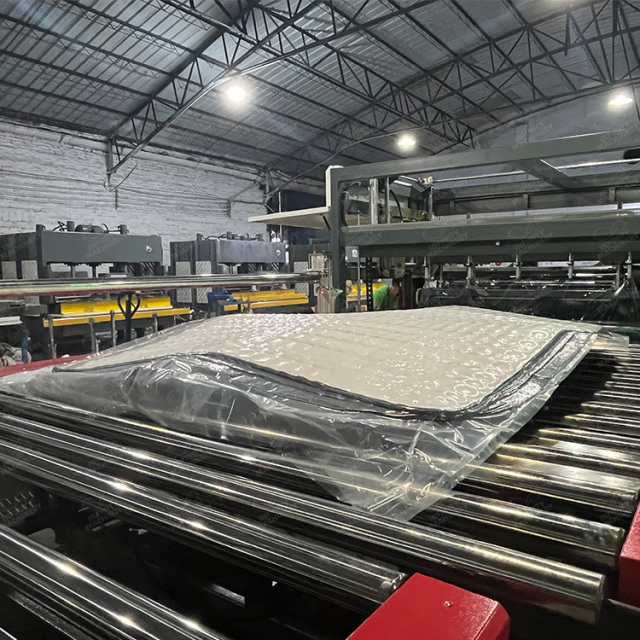

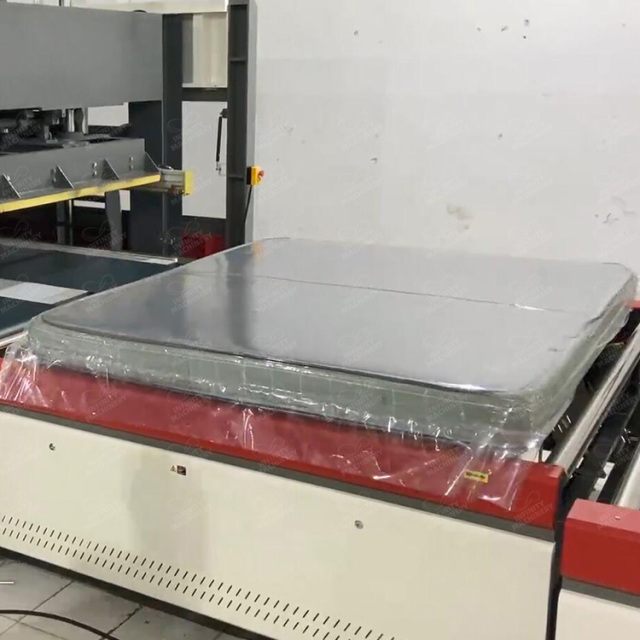

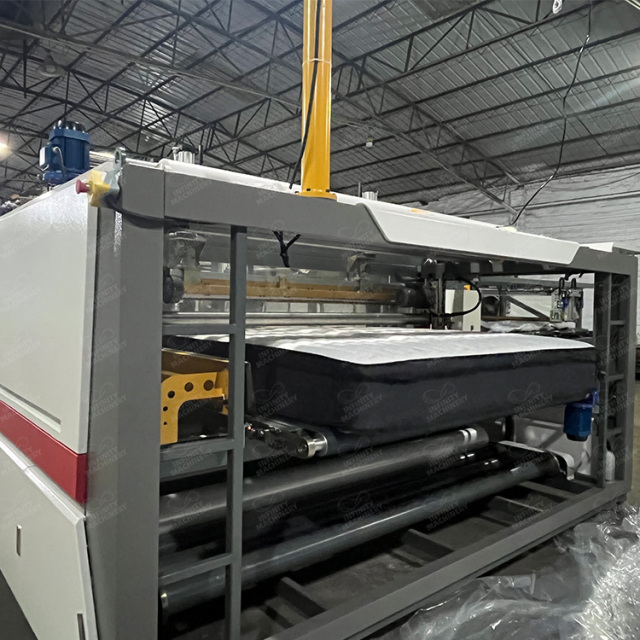

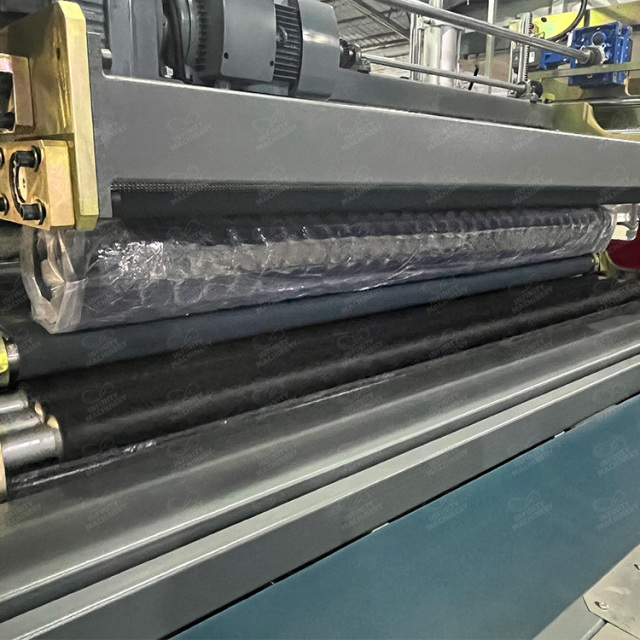

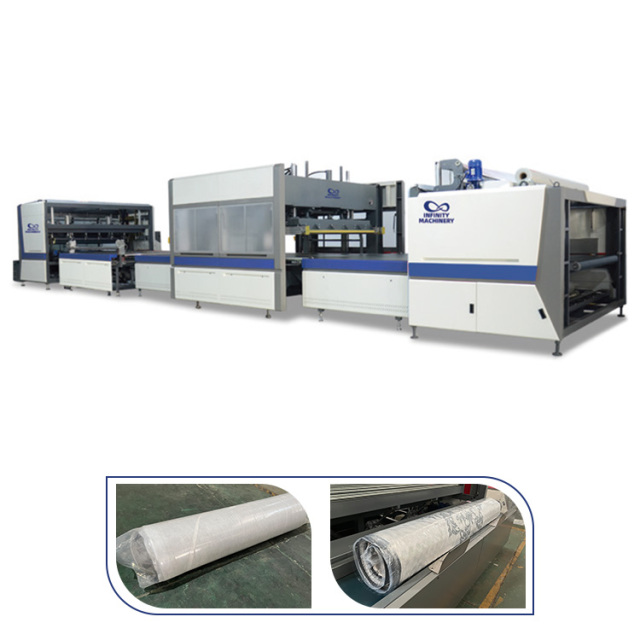

The IF-BCR8 Full Automatic Mattress Compress Fold Roll & Packaging Machine is a versatile and highly efficient solution for modern mattress production. Designed to support multiple functions and working modes—including plastic film wrapping, pressing, rolling individually, wrap-compress-roll, and wrap-compress-fold-roll—this machine provides flexible packaging options to meet diverse production needs.
It can also be combined with a stacking machine for plastic wrapping only, making it adaptable to different production workflows. The production line layout can be customized in straight-line or corner configurations, depending on the factory site.
Equipped with a Siemens PLC, HMI, and inverter system, the IF-BCR8 ensures reliable control and automation. The control panel supports multilingual settings, while the remote system enables easy installation, troubleshooting, and maintenance. With high capacity, excellent adaptability, and stable performance, this machine is a cost-effective choice for mattress manufacturers worldwide.
Techinical Parameter| Model | IF-BCR8 |
|---|---|
| Maximum Mattress Size | 2300 x 2100 MM |
| Maximum Mattress Height | 450 MM |
| Roll Diameter Range | 220 MM - 480 MM |
| Maximum Pressure | 60 Tons |
| Efficiency | 30 Seconds per piece |
| Total Power | 47 KW |
| Suitable Plastic Material | PE Plastic |
| Air Pressure | 0.6 - 0.8 MPa |
| Net Weight | 17,500 KG |
| External Dimension | L15,000 * W3,600 * H3,100 MM |
| Voltage | 3 Phases 380V/50HZ (Customized) |
