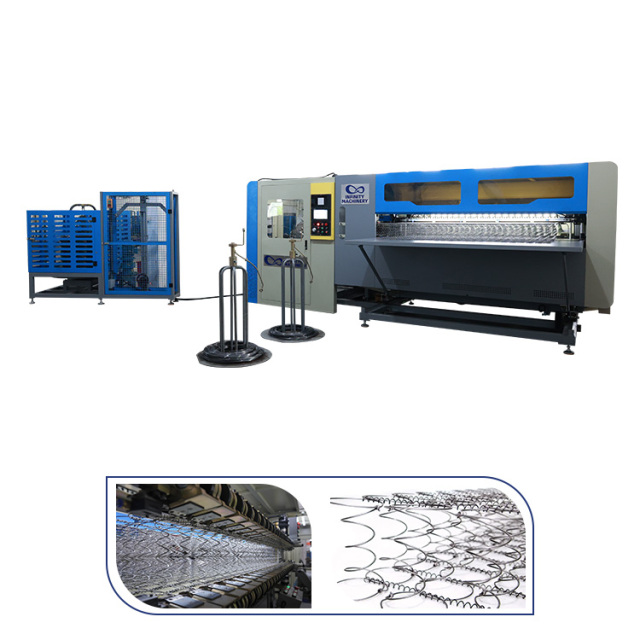

►IF-BPL100 High speed automatic bonnell spring production line is the latest bonnell spring production line for producing "Bonnell" type innerspring units. It can produce innerspring units directly from the wire.
►Firstly the steel wire is coiled to a spring, and then will be transferred and inserted into the assembler by the automatic system. After this, the upper and lower springs are coiled together at the same time and helical wire is coiled, cut, and clamped at both ends automatically. When a unit is finished, it could be ejected automatically, which is a labor force saver.
►Also, workers can adjust the direction of the spring knots, which makes the rolling packing a lot easier.
| Model | IF-BPL100 |
|---|---|
| Spring type | Bonnell |
| Capacity | 80-100 sheets/8 hours |
| Maximum width | 2M |
| Spring end ring | Φ65-Φ90mm |
| Spring stell wire gauge | Φ1.9-Φ2.4mm |
| Height wire gauge | Φ1.3-Φ1.6mm |
| Spring height | 80-200mm(<80mm on request) |
| Convolutions | 4-7 Turns |
| Total power | Aprox. 35KVA |
| Weight | Net Approx: 5600KG |
| Power requirement | 380V, 3 Phase, 50-60Hz(Option: 415V-480V, 220V) |
