Minimum Order Quantity: 1 Set
Packaging Details: Film Packing / Wooden Crate Protection
Trade Terms: FOB, C&F, CIF (Optional)
Delivery Time: 10-20 Working Days
Warranty Period: 3 Years Comprehensive Coverage
Certifications:

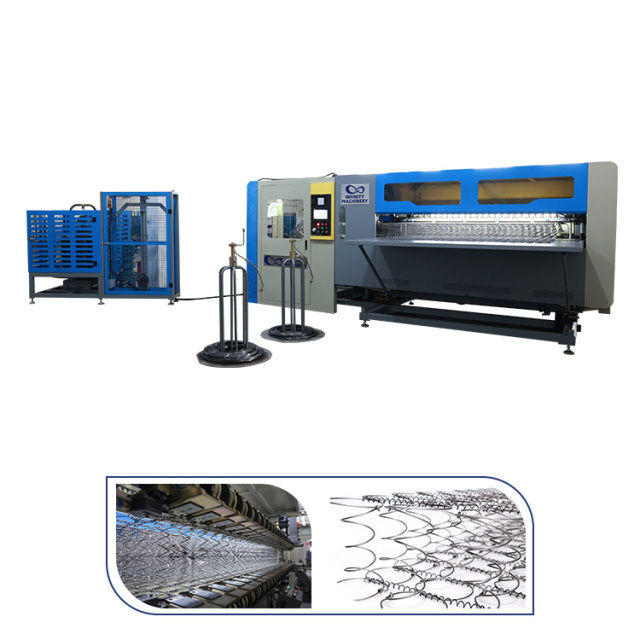

| Model | IF-BPL90 |
| Spring type | Bonell |
| Working principle | Ether CAT Servo control |
| Spring capacity | 90 springs/min |
| Capacity | 70-90 sheets/8 hours (1800*2000mm for reference) |
| Max width | 2m |
| Spring end ring dia | 65-90mm |
| Spring wire dia | 1.9-2.4mm |
| Assembly wire dia | 1.3-1.6mm |
| Spring height | 80-200mm (or customized) |
| Convolutions | 4-7 turns |
| Total Power | Approx. 35KW |
| Weight | 5500kg |
| Voltage | 380/50-60Hz, 3 phase (415-180V, 220V for option) |
