| Model | IF-OOL |
| Voltage | 3AC 380V |
| Frequency | 50-60HZ |
| Input current | 20A |
| Cable section | 5 * 4 mm² |
| Air consumption | Approx.0.6m³ / min |
| Air pressure | 0.6-0.7mpa |
| Working temperature | +5°C-+45°C |
| Power consumption in total | Approx.8kw |
| Weight | Approx.4000kg |
| Production capacity | 1400 roots / 8 hours |
| Consumption Material Data | Steel Wire |
| Wire diameter | Φ3.9-4.1mm Φ4.2-44.4mm Φ4.5-4.7mm Φ4.8-5.0mm |
| lnner dia.of wire roll | Min.1600mm |
| Outer dia.of wire roll | Max.2400mm |
| Acceptable weight of wire roll | Max.2500kg |

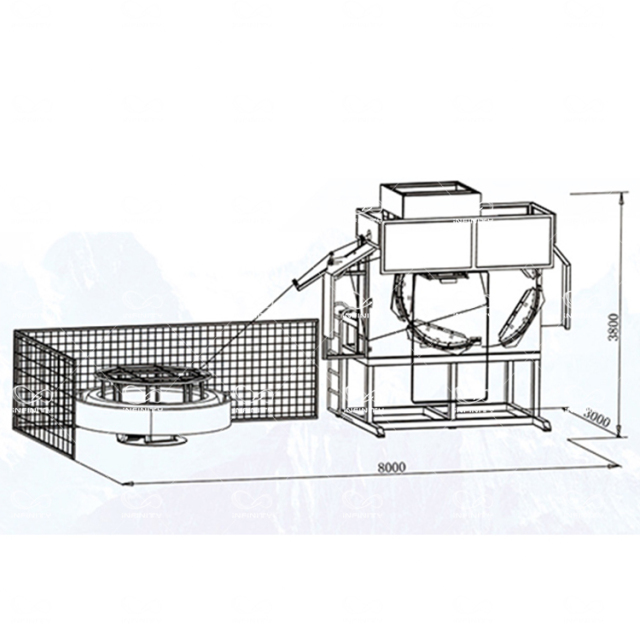

| Working range(mm) | Border length * width |
| Standard | Border length 1800-2200mm,width900-2000mm |
