Minimum Order Quantity: 1 Set
Packaging Details: Film Packing / Wooden Crate Protection
Trade Terms: FOB, C&F, CIF (Optional)
Delivery Time: 10-20 Working Days
Warranty Period: 3 Years Comprehensive Coverage
Certifications:

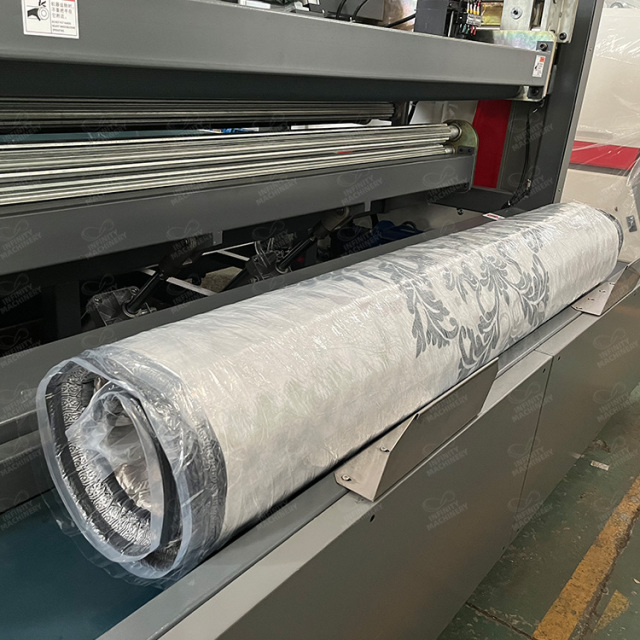

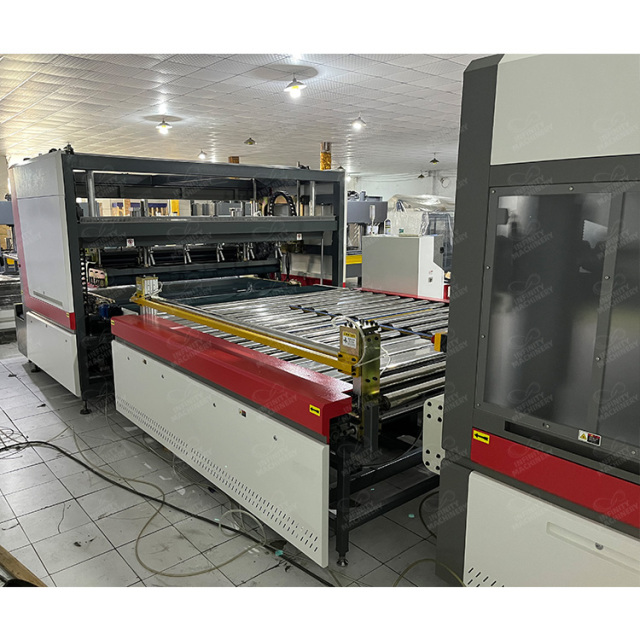

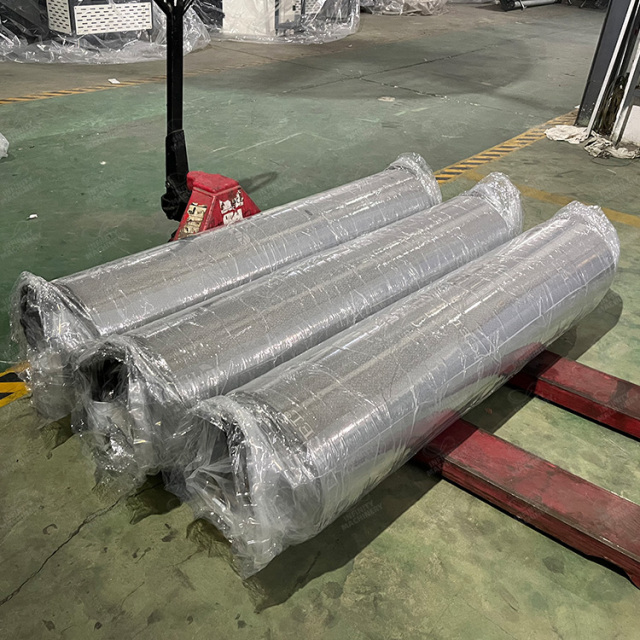

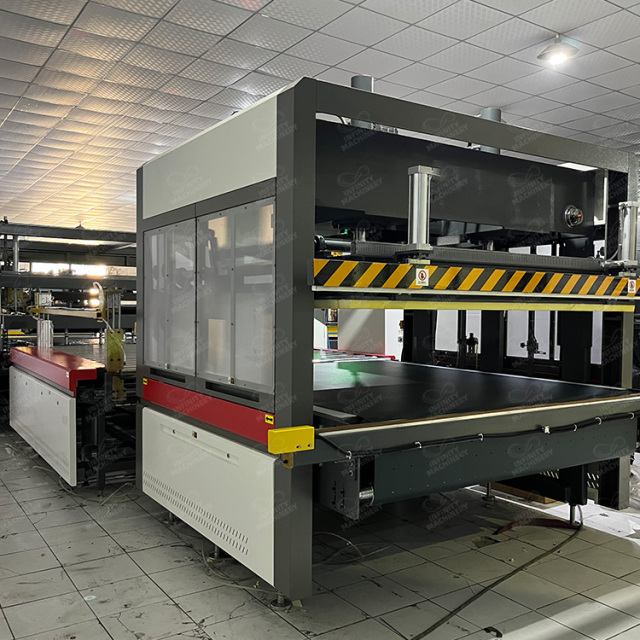

The IF-CR9 Automatic Mattress Fold Rolling Machine is a next-generation packaging solution that combines sealing, compressing, folding, and rolling functions in one fully automated system. It not only rolls but also folds mattresses automatically, optimizing packaging size and reducing storage and transportation costs.
With the ability to set the roll packaging diameter according to mattress sizes, the IF-CR9 adapts to different mattress types including foam, latex, and spring. Its advanced Siemens PLC control system and high-quality electrical components ensure precision, stability, and long-term reliability.
The multilingual control panel makes operation easy for global users, while the remote system provides simple installation, real-time troubleshooting, and maintenance support. Designed for efficiency and adaptability, the IF-CR9 is the perfect solution for mattress factories aiming to maximize logistics savings and streamline packaging processes.
Techinical Parameter
| Model | IF-CR9 |
| Maximum Mattress Size | 2200×2000 MM |
| Maximum Mattress Height | 450 MM |
| Roll Diameter Range | 220 MM - 480 MM |
| Maximum Pressure | 100 Tons |
| Efficiency | 30 Seconds/PCS |
| Total Power | 33.6 KW |
| Suitable Plastic Material | PE Plastic |
| Air Pressure | 0.6 - 0.8 MPa |
| Net Weight | 9000 KG |
| External Dimension | L10300×W3380×H2550MM |
| Voltage | 3 Phases 380V/50HZ (Customizable) |
