Minimum Order Quantity: 1 Set
Packaging Details: Film Packing / Wooden Crate Protection
Trade Terms: FOB, C&F, CIF (Optional)
Delivery Time: 10-20 Working Days
Warranty Period: 3 Years Comprehensive Coverage
Certifications:

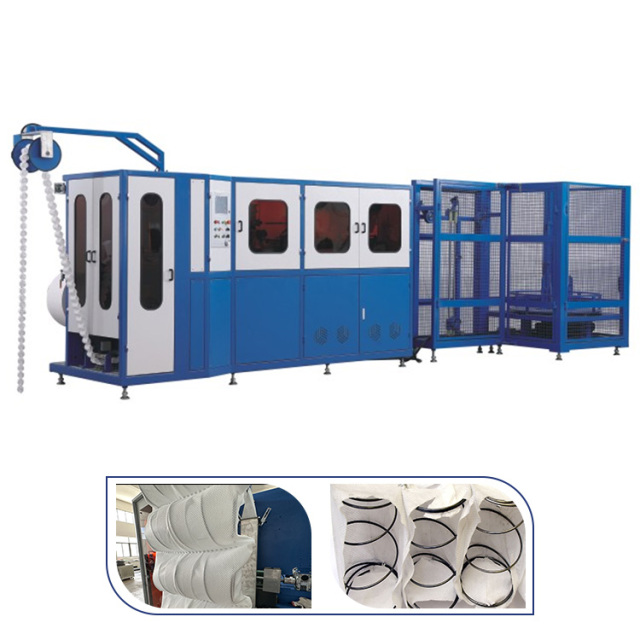

►IF-P130-1 CNC Automatic Pocket Spring Coiling Machine is a full automatic pocket spring making machine with high efficiency.
►This machine is full mechanical drive, no need air compressor, can save power cost, very stable, furthermore, this machine cover a very small area saves workshop site and cost, the springs made by this machine are formed the shape first, then heat-treated, springs with good elasticity.
►This pocket spring machine have error detection function , it will automatically shut down when production error occurs.
| Model | IF-P130-1 |
| Efficency | 130pcs/min |
| Non-Woven Supply | 60-100g/m2 |
| Pocket Spring Height | 80-250mm |
| Wire Dia. | 1.6-2.3mm |
| Spring Core Dia. | 55-72mm |
| Non-Woven Width | 380-700mm |
| Average Power Supply | 22KWH |
| Air Requirement | 0.02m3/min 0.8MPa |
| Gross Weight | 4000KG main machine |
| Overall Dimension | 6000X1700X2200mm |
