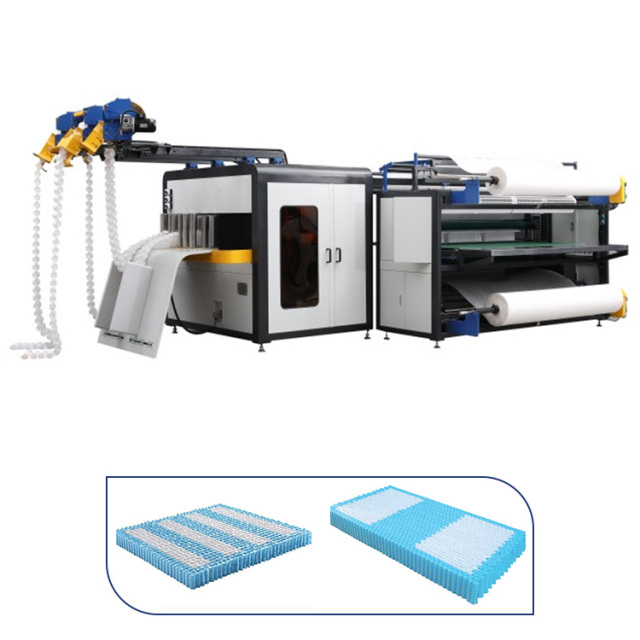

IF-PPA Fully Automatic High Speed Pocket Spring Assembly

No.IF-PPA
Minimum Order Quantity: 1 Set
Packaging Details: Film Packing / Wooden Crate Protection
Trade Terms: FOB, C&F, CIF (Optional)
Delivery Time: 10-20 Working Days
Warranty Period: 3 Years Comprehensive Coverage
Certifications:
CE European Conformity Certificate
ISO 9001 Quality Management Certificate
SGS International Verification Certificate
ISPA International Sleep Products Association Certificate
  • IF-PPA Fully Automatic High Speed Pocket Spring Assembly
  • IF-PPA Fully Automatic High Speed Pocket Spring Assembly
  • IF-PPA Fully Automatic High Speed Pocket Spring Assembly
  • IF-PPA Fully Automatic High Speed Pocket Spring Assembly
  • IF-PPA Fully Automatic High Speed Pocket Spring Assembly
  • IF-PPA Fully Automatic High Speed Pocket Spring Assembly
  • IF-PPA Fully Automatic High Speed Pocket Spring Assembly

Description

IF-PPA Fully Automatic High Speed Pocket Spring Assembly production line is a high speed pocket spring assembly machine with high efficiency. 3times faster than normal.

This machine assembling 14 rows of pocket springs a minute, about 2-3 minutes to produce a mattress. The machine mainly uses mechanical transmission and air pressure demanded is very low.

This machine occupies a very small area to save site cost, it is full CNC, 1 person can operate the automatic production line that including 3 pocket spring machines and this machine.




Technical Specification
Speed (approx.): 18-20 rows/minute
Maximum width of nonwoven fabric: ≤2200mm
Bonding spring height: 120-250mm
Average power consumption: 3Φ380V 15KWH/set
Air requirement about: 0.5m3/min 0.8mpa
Overall Dimension: 6500X3200X2600mm
Weight: 5000kg



Product Feature

  High speed, high efficiency
  Save Labor cost
  Continuous or intermittent gluing is optional, save glue
  Support Multi-Zone mattress production
  Dimension parameters can be stored and preset
  With automatic error detection function
  Easy to learn and operate
  Double-sided adhesive cloth or single-sided adhesive cloth , also can not adhesive cloth
  High speed spring machine assembling 14 rows of pocket springs a minute, about 2-3 minutes to produce a mattress. The machine mainly uses mechanical transmission and air pressure demanded is very low.
