Minimum Order Quantity: 1 Set
Packaging Details: Film Packing / Wooden Crate Protection
Trade Terms: FOB, C&F, CIF (Optional)
Delivery Time: 10-20 Working Days
Warranty Period: 3 Years Comprehensive Coverage
Certifications:

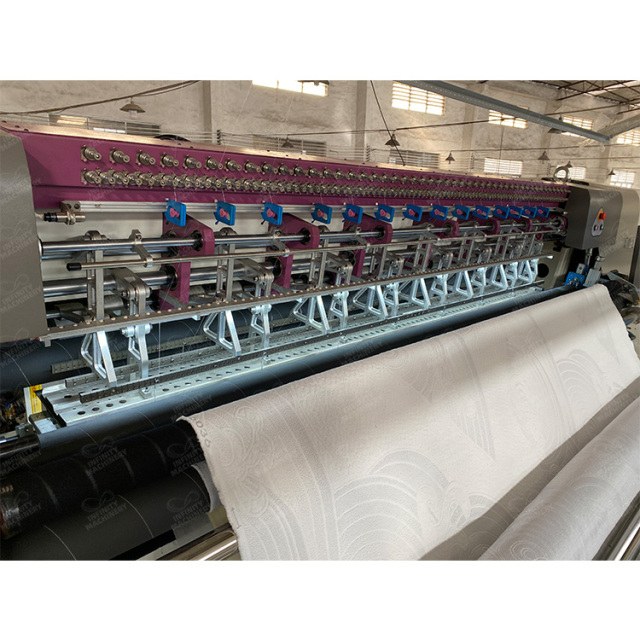

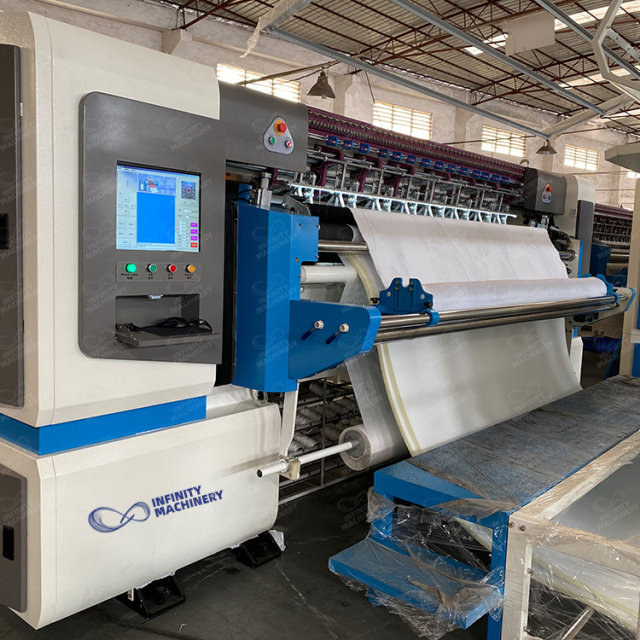

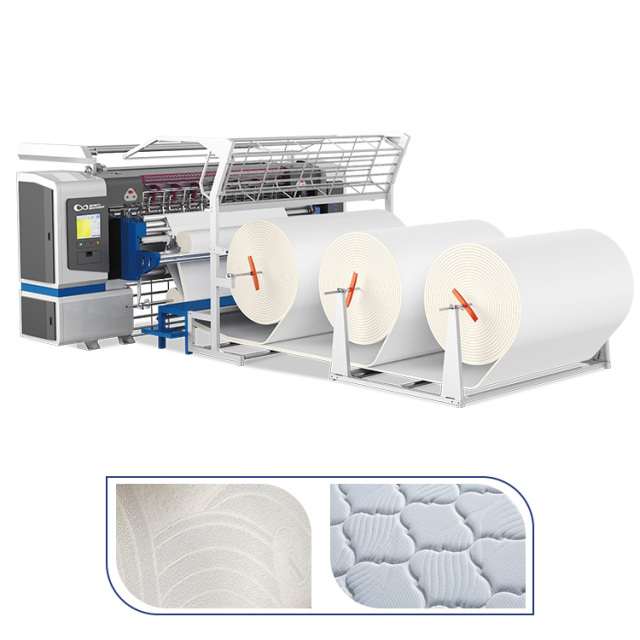

| Model No. | IF-Q-1400 |
| Dimension (L×W×H) | 7400×4900×2520mm |
| Main shaft speed | 600-1400rpm |
| Stitch length | 3-8mm |
| Quilting width | 2450mm |
| Quilting thickness | ≤80mm |
| Needle Type | 24/180, 23/160, 22/140, 21/130 |
| Space between needles | 12.7/25.4mm |
| Production speed | 80-330m/h |
| Max horizontal movement | 304.8mm |
| Space between needle rows | (50.8,76.2,127)5"、 (76.2,76.2,152.4)6" |
| Gross weight | 5800kg |
| Power | 11KW |
| Voltage | 380V 60Hz 3Phase or customize |
